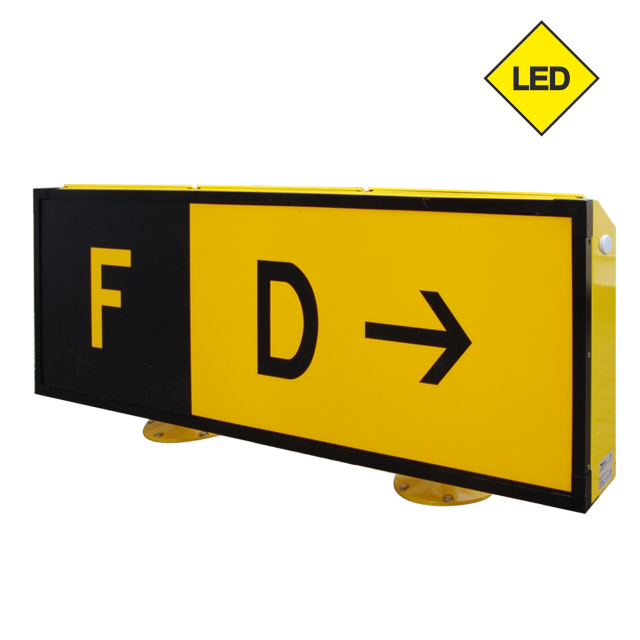

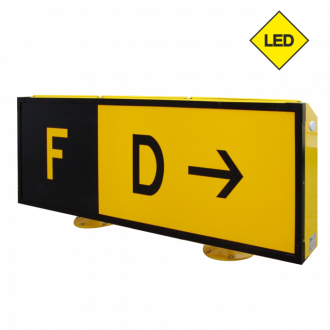

TZP-D
Application
- illuminated aerodrome LED signs for aerodromes of any ICAO category
Files for download
pdf Data Sheet (1.56 MB)pdf Certificate MO AČR (833 KB)
pdf Certificate LÚ SR (365 KB)
Certificates
- ICAO ANNEX 14 Volume I
- FAA AC 150/5345-44F
Description/Properties
- direction, destination, boundary, mandatory instruction and TWY location signs
- mandatory sign - white inscription on red background
- informative sign - black inscription on yellow background
- both types can be supplemented with a place sign
- constant illumination of entire sign space due to LED dense network
- constant luminance intensity in range 2,8-6,6 A
- electronics is distributed into several independent segments (the number corresponds to the length), failure of one segment has no influence to other segments
- modular design allows quick and easy tool-free repair, modules replacement can be performed just with one hand
- low price and interchangeability of modules saves cost and simplifies maintenance
- delivery contains complete electronics, cable with connector and mounting feet; delivery does not include isolation transformer
Construction
- structure consisting of aluminium box made of sandwich aluminium sections
- no need to take off entire panel for servicing, but just a small service opening doors
- composite material made legs ensure high strength and weather resistance
- reinsurance string prevents sign blow away
- possibility to change panel directly in field
Operating conditions
- protection IP 54
- working temperature from -55 to +55 °C
- resistance against squalls and turbulences up to the speed of 322 km/h
